The Twinkly Plus 2023 Controller unboxing and onboarding
Applies to Twinkly Plus 2023 Controller
Unboxing

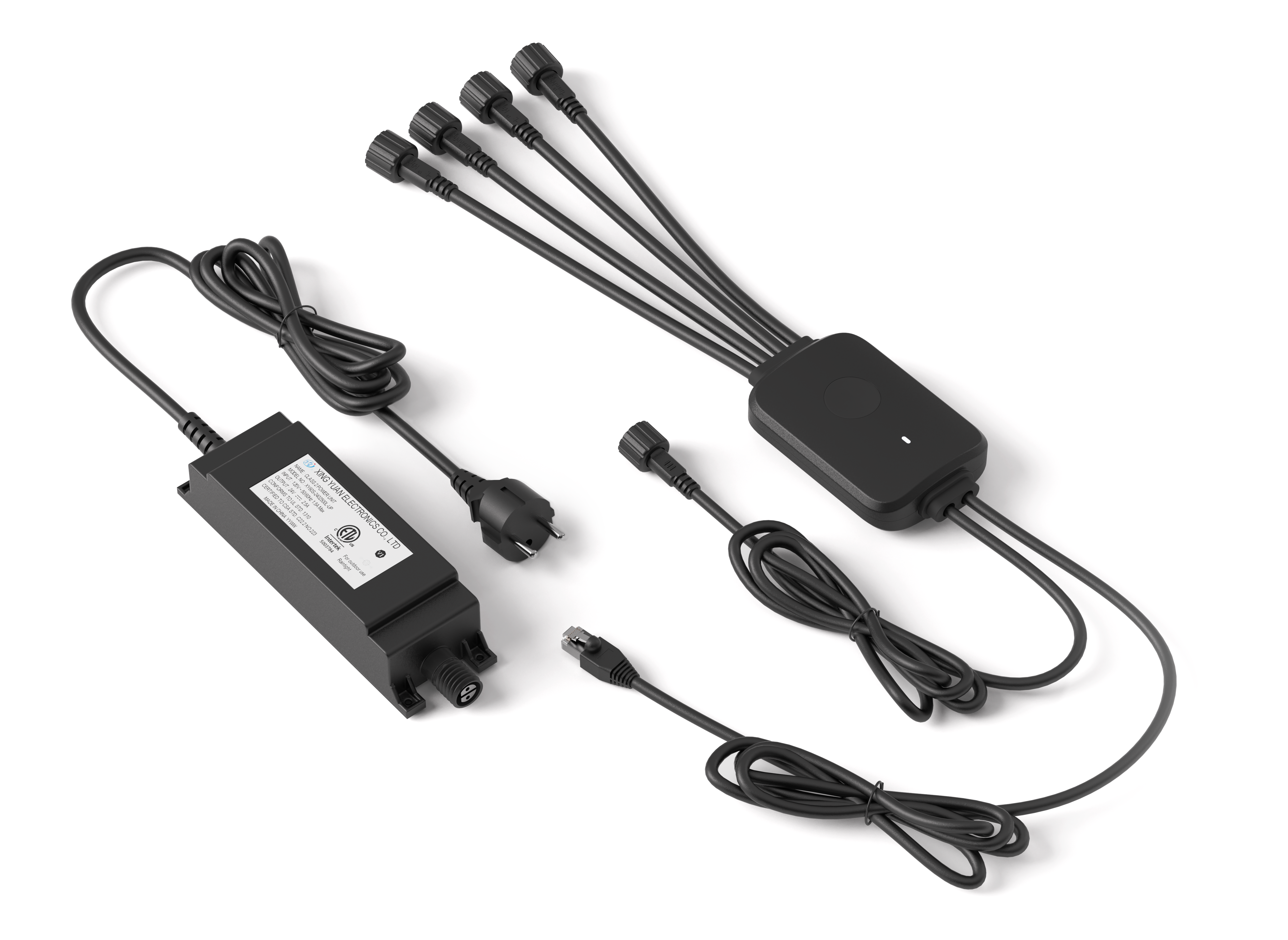

Upon opening the Twinkly Plus Controller package, you will discover a selection of essential items designed to enhance your experience. The contents are thoughtfully curated to ensure you have everything you need to get started.
- The first item you will find is the TWPLUS-C-4P-23. This is the main controller unit that allows you to manage and customise your lighting setup with ease. Its user-friendly interface and advanced features make it a central component of the Twinkly ecosystem, enabling you to create stunning light displays.
- In addition to the controller, the package includes a power adapter that operates within a voltage range of 120 to 240 VAC, accommodating both 50 and 60 Hz frequencies. This power adapter is capable of providing a maximum output of 90 watts.
Operation and Features
Twinkly Plus boasts several distinctive features that warrant detailed explanation and consideration:
- Power Supply The Twinkly Plus is equipped with a replaceable 90W power supply.
- Onboarding and Network Connection One of the standout features of Twinkly Plus is its sophisticated onboarding process and network connectivity options. The device incorporates an automatic identification system that seamlessly recognises any device connected to the controller, streamlining the setup process for users. In addition to this, Twinkly Plus utilises a Bluetooth connection system, which allows for easy pairing and communication with other devices. Unlike the Twinkly PRO Wi-Fi controllers and retail devices, Twinkly Plus also offers an Ethernet connection, enabling users to connect the device to a wired network using a network cable. This flexibility in connectivity options ensures a stable and reliable network connection, which is essential for optimal performance and user experience.
- PRO-User Features Upon successfully onboarding a Plus device through the dedicated app, users are granted access to a suite of PRO features. This includes complimentary access to the WebApp, which provides an enhanced user interface for managing and controlling the device. Furthermore, users can take advantage of integrations with various protocols such as DMX/Artnet and OSC, among others. These advanced capabilities empower users to create intricate lighting displays and integrate their Twinkly Plus with other professional lighting systems, making it an ideal choice for both casual users and professionals seeking to elevate their lighting experience.
- Groupable also with devices from the Retails range Twinkly Plus enables users to form groups that include devices from the retail range. It is important to note that when a group is created that consists of both Plus and Retail devices, the resulting group will adopt the characteristics of the Retail products. This means that certain functionalities may be compromised. For instance, you will lose the capability to manage the group through the Webapp, and there will be no integration with ArtNet or DMX protocols. Therefore, while it is possible to combine these devices, users should be aware of the limitations that come with mixing Plus and Retail products in a single group.
Set up process
The setup process for devices operating in Wi-Fi mode is quite similar to that of Generation II devices, which also utilise a Bluetooth feature for initial configuration. This means that users familiar with previous generations will find the process straightforward and familiar. On the other hand, if you opt for an Ethernet connection mode, the setup is even simpler. All that is required is to connect the device directly to your router using a network cable or through a network switch. Once this connection is established, the application will automatically recognise the device as being connected when you attempt to add it.
It is important to note that if you have previously set up your Twinkly Plus device using Wi-Fi mode and now wish to transition to an Ethernet connection, the process is seamless. Simply plug the network cable into your router, and the device will automatically switch to Ethernet mode without necessitating any further action on your part within the application. This feature enhances user convenience and ensures a smooth transition between connection types. Conversely, if you have connected your Twinkly Plus device via Ethernet and later decide to revert to Wi-Fi, the process is equally uncomplicated. You need only disconnect the network cable, and the device will revert to Wi-Fi mode without any additional steps required in the app.
However, it is essential to understand that if you have never connected the device in Wi-Fi mode before, the situation changes slightly. In this case, after you disconnect the network cable, you will need to follow the onboarding procedure within the application to set up the device for Wi-Fi connectivity. This step is crucial as it allows the app to recognise the device and guide you through the necessary configurations to establish a successful Wi-Fi connection.
Different groups of LEDs connected to the same controller
The Twinkly Plus controller offers a remarkable feature that enables users to connect a variety of LED products to a single controller. This flexibility allows for the integration of both PLC (Programmable Logic Controller) and SPI (Serial Peripheral Interface) LED products, catering to diverse lighting needs and preferences. For instance, you can connect a Curtain to one port, while simultaneously attaching Bulbs to another, creating a harmonious and visually appealing lighting setup that suits your specific requirements.
Moreover, it is worth noting that the Twinkly Plus controller stands out from its counterpart, the Twinkly PRO, by providing compatibility with the Android operating system. This compatibility ensures that a wider range of users can enjoy the benefits of the Twinkly Plus controller, allowing for easy control and customisation of their LED lighting experiences through their Android devices. This feature not only enhances user accessibility but also broadens the potential for creative lighting designs, making it an excellent choice for both personal and professional applications.
Onboarding
The onboarding procedure is explained step by step in this helpful tutorials.
