Description of Web app's section "Projects"
Applies only to all Twinkly PRO Ethernet, Twikly Plus devices and Lightwall.
[this feature is not available for Twinkly PRO Wi-fi controller and Twinkly Retail]
The first voice of the web app's side menu is Projects.
This section is divided into:
Devices
Within the voice Devices, you can find the list of products compatible with Twinkly Pro WebApp – .
Twinkly Pro Ethernet Controller Box, Twinkly Pro Controller 1500 Eth and Twinkly Pro Power Line Controller, Twinkly Plus and Lightwall.
It contains technical details about each device as well as their status whether they are connected to the cloud.

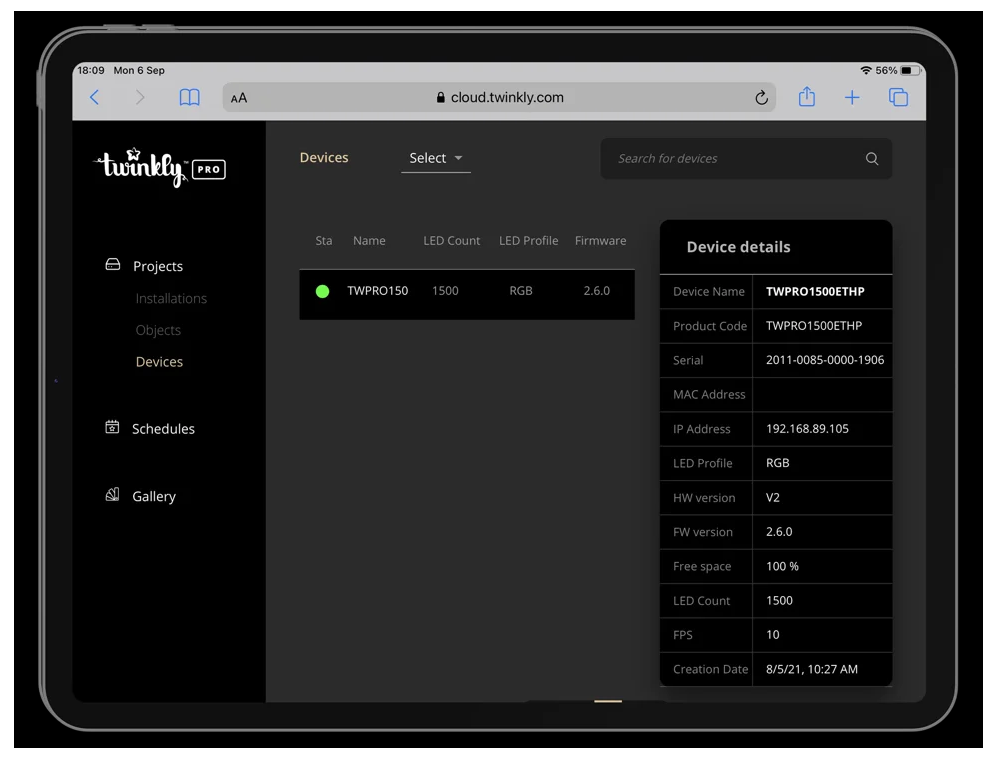

Selecting the device, on the right side of the screen, appears Device Details box, which contains all the pieces of information available for this specific device:
-
Device Name
-
Product Code
-
Serial
-
MAC Address
-
IP Address
-
LED Profile
-
HW version
-
FW version
-
Free space
-
LED Count
-
FPS
-
Creation Date

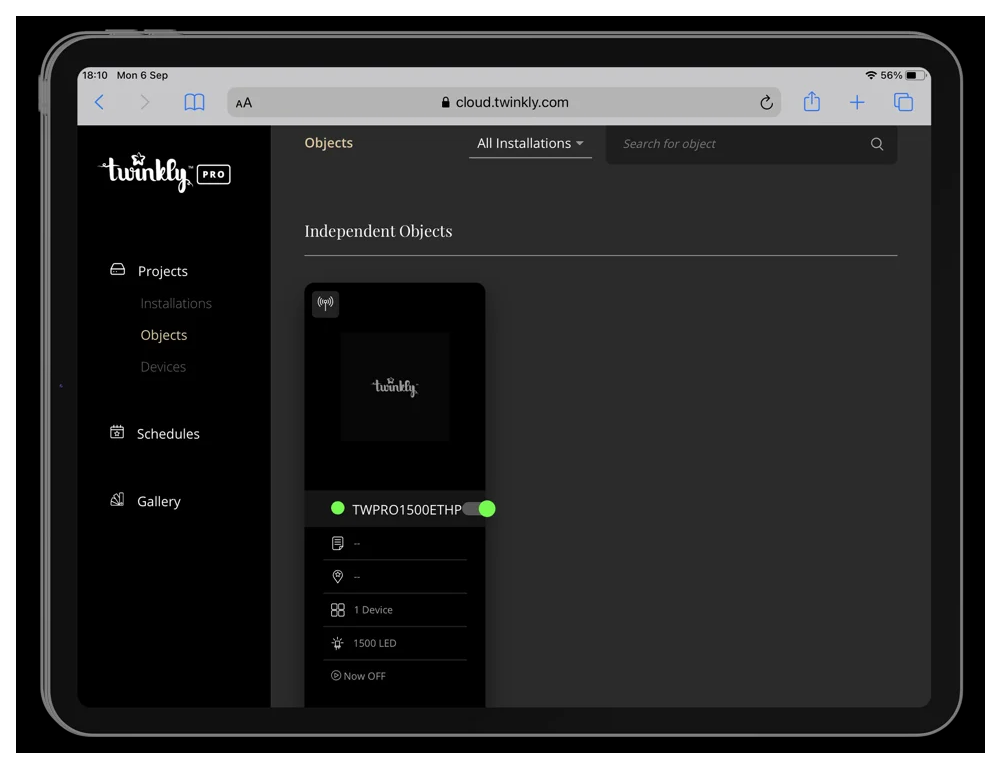

Objects
Objects refers to a device or a group of devices that are part of a certain Installation.
Groups allow multiple devices to work together, and extend virtually the lighting effects on the same setting also if made by separated products.
To create a Group, Object on the web app, open the mobile one and then access the “Devices” menu, by tapping on the LED-shaped icon, in the bottom right corner. Select the installation that contains the devices you wish to group.
Click on the " Plus " symbol on the top right corner of the screen and click on “ Create Group “to choose what kind of group to create.
Select the devices you want to join in a group
Name your Group as you favor (it will be useful to distinguish them later on)

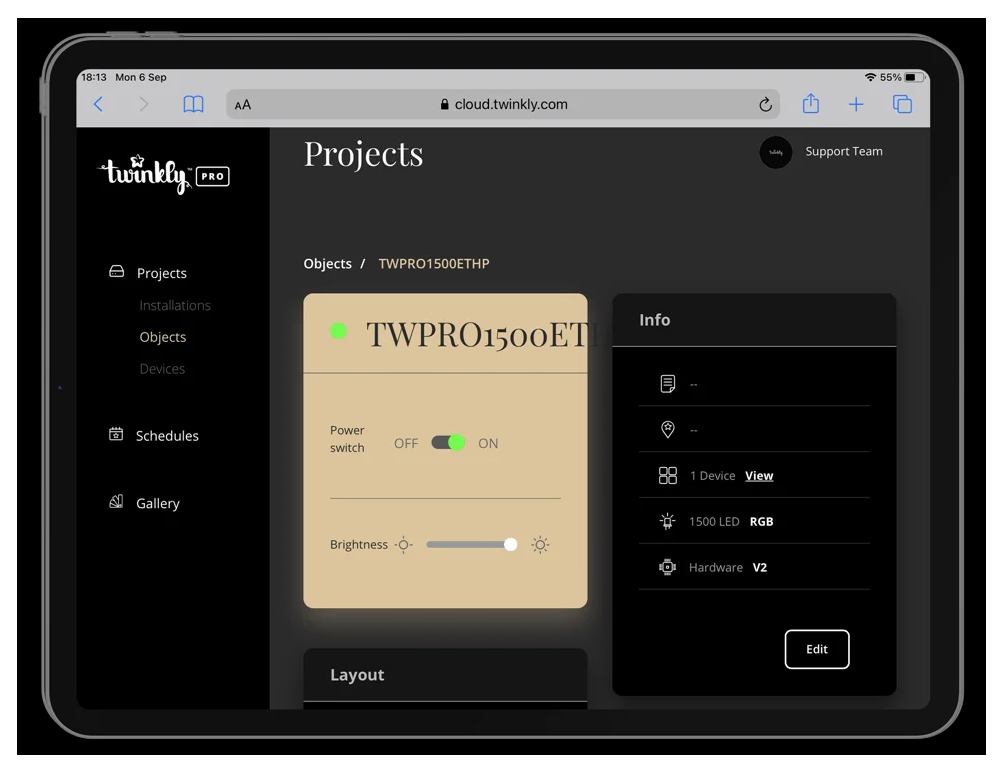

Selecting the Object you want to work with, you will have a screen with different boxes:
The first one, distinguished by the object's name, is a basic control panel with a switch button and a brightness, adjustable bar.
Info, contains the details regarding the group, as the number of devices composing it, the total amount of LEDs, the kind of hardware, etc.
The Layout repository contains the group layout, taken by mapping the devices, to act directly on the LEDs as they are positioned.
Currently Playing instead, allows you to see, also remotely, which effects are playing at this moment on your object.

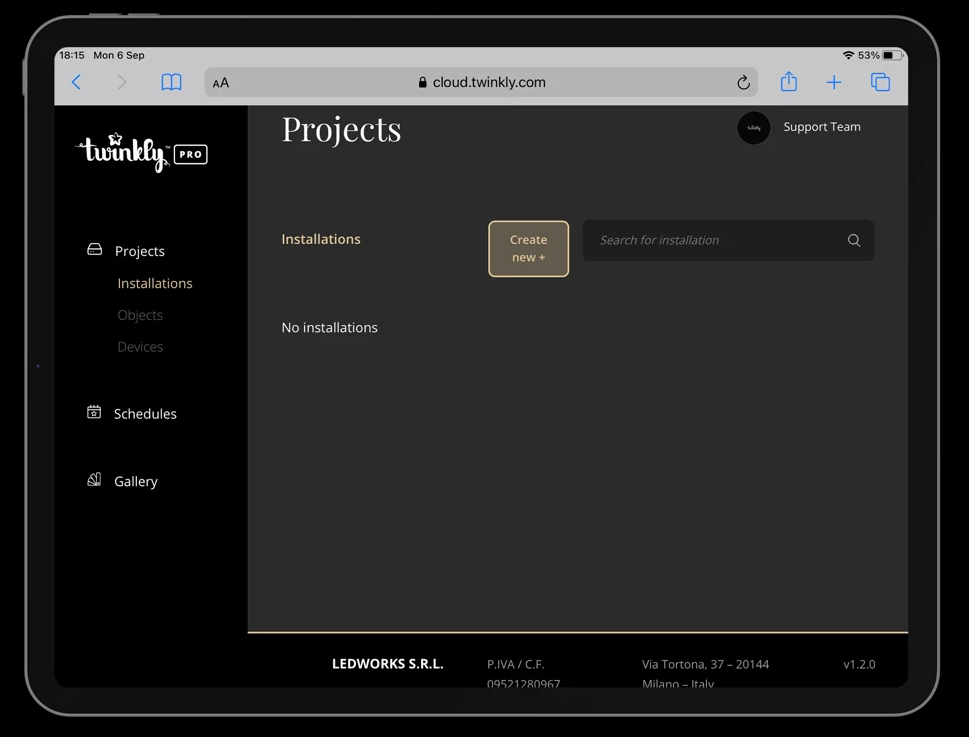

Installations
Installations, instead, are just places within which one or more devices are set up. For example you may choose to create an Installation for devices in the garden, one for your gaming room, one for the living room, and so on.

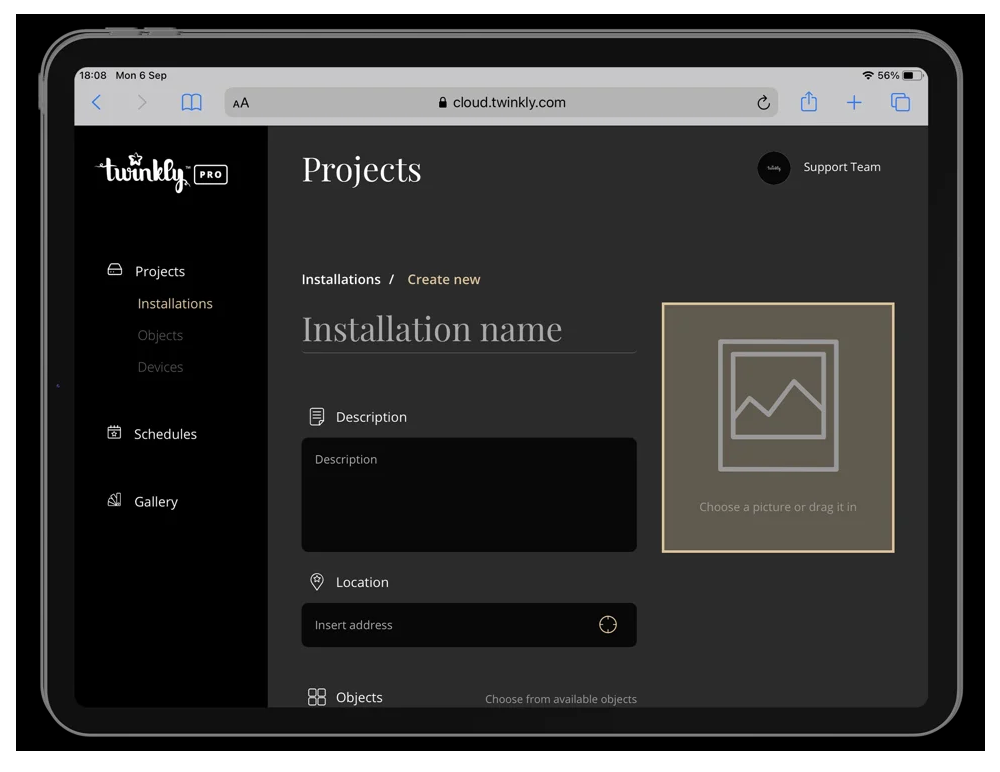

You can create them directly on the mobile App or also on the Web App. Here you will be able to do that clicking on the Create New button.

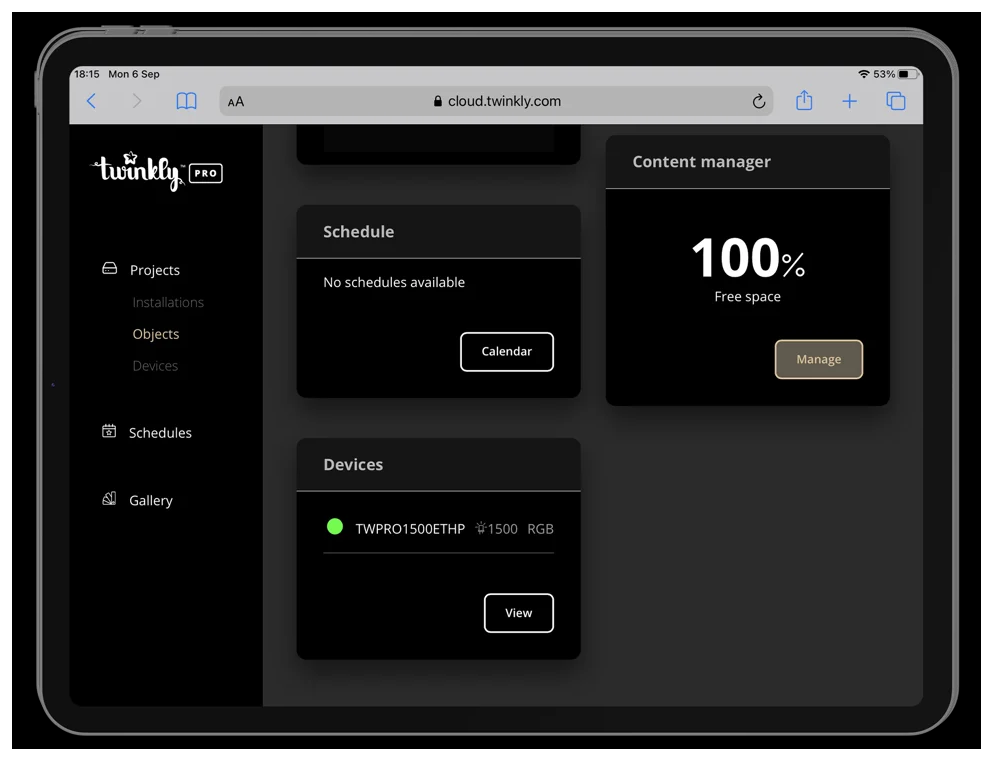

Moreover, eere is an overview of the other items/features:
Schedules contains info about eventual programs on the Object
Devices provides details on the products in the group or object
Last known is a preview of the last effect played on the object
Content Manager is the box in which you find the number of effects installed (via mobile app) on your object and the percentage of the left capacity.
