what do the various colors of lights on the twinkly controller mean? – Help Center

Meanings behind the controller status indicator lights on your Twinkly device

Applies to Twinkly Generation I and Generation II device and Twinkly Music dongle.

The little light you find on your Twinkly controller is called the controller status indicator and gives you information about the status of your lights.

Generation I

Blinking green	AP – Access Point mode	No device connected
Steady green	AP – Access Point mode	Connected
Blinking blue	Wi-fi mode	Connection in progress or updating
Steady blue	Wi-fi mode	Connected

Generation II

Blinking green	AP – Access Point mode	No device connected
Steady green	AP – Access Point mode	Connected
Blinking blue	Wi-fi mode	Connection in progress
Steady blue	Wi-fi mode	Connected
Blinking red	Wi-fi mode	Unable to connect
Steady red		General Error
Steady light blue	Setup mode (Bluetooth on)
Yellow		Firmware update in progress
Blinking white		Reset process in progress
Steady fuchsia	WPS mode
Blinking blue and white	Twinkly Music connected

When the LED on the controller loops all colors, it means that your device is in Shop mode.
(here you can find all the info)

Twinkly Music

Twinkly Music dongle led indicator can be:

Blinking green	Power ON	Device not connected
Steady blue	Home Wi-Fi network mode	Device connected
Blinking blue	Home Wi-Fi network mode	Connection in progress
Blinking red	Home Wi-Fi network mode	Unable to connect
Steady light blue	Setup Mode	Bluetooth ON
Steady yellow		Firmware update in progress
Steady red	General error
Blinking white		Reset procedure in progress
Steady white		Reset procedure completed

Twinkly Squares

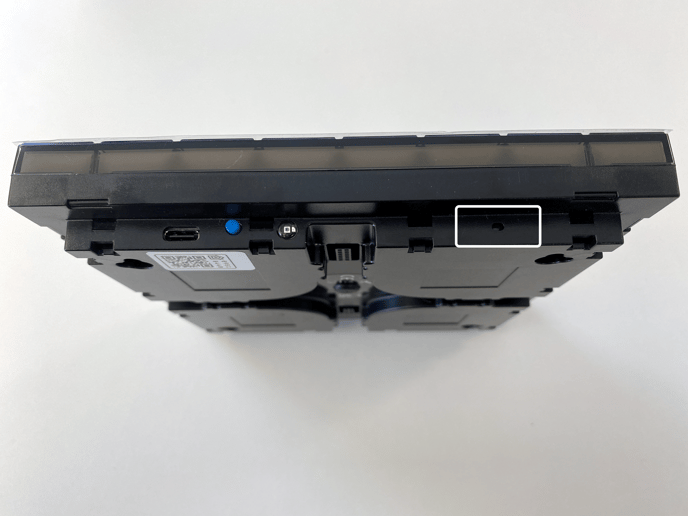

Squares doesn’t have a controller because the Twinkly technology is embedded inside the master tile, so the controller status indicator is located on the bottom opposite the USB port. This light, and the individual pixels on the front of Squares, will tell you what the status of your device is.

When Squares is on, the LED status indicator remains off so as not to interfere with the effects played.


First power up: Default status

Blinking green. Squares creates a mosaic effect with a single color for all connected devices (master panel + extension panels).


If the master panel lights up in a mosaic pattern and the extension panels connected to the 4 master ports only light up 4 red LEDs in the center, the power supply is delivering poor power.

For all power supply specifications, please see this article.

Bluetooth status

A blue light is displayed on all connected Squares and remains in Bluetooth state for 5 minutes.


Direct connection status (AP MODE)

The light stays steady green once the device is connected to the Twinkly direct network, and a green mosaic effect is played on all connected panels.


Successful reset status

The master panel turns red.

Read this article to learn more about complete reset procedures.

WPS mode

The light and panel are purple.
